600WHSFKS12

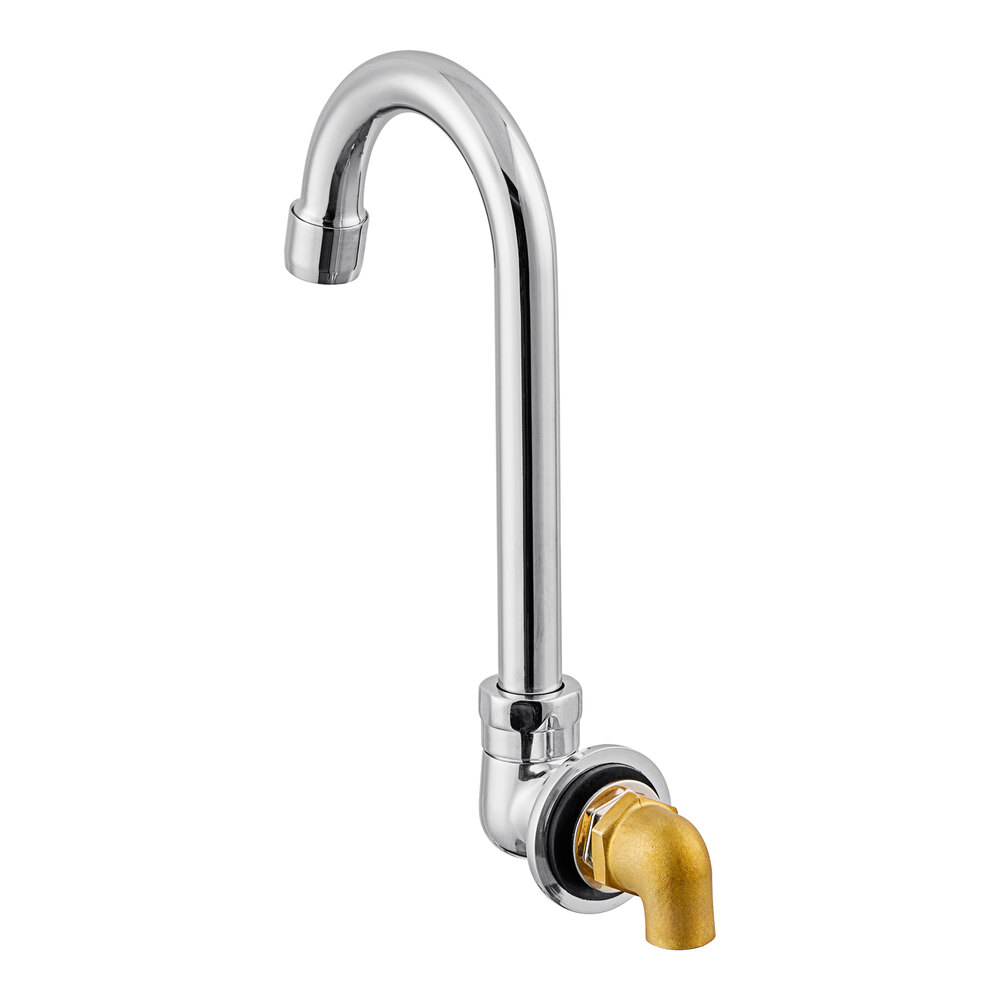

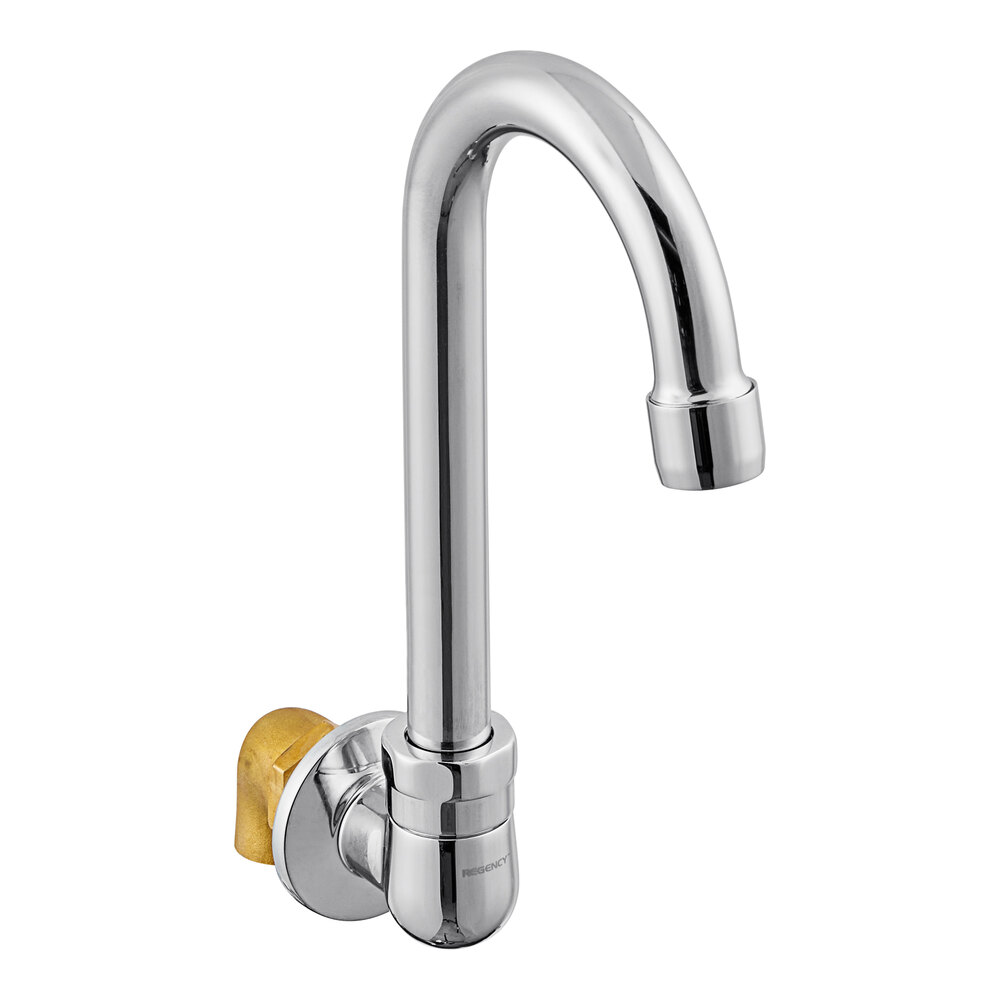

Wall-Mount Hands-Free Faucet for 600HS17KODST and 600HS17FPDST
Features

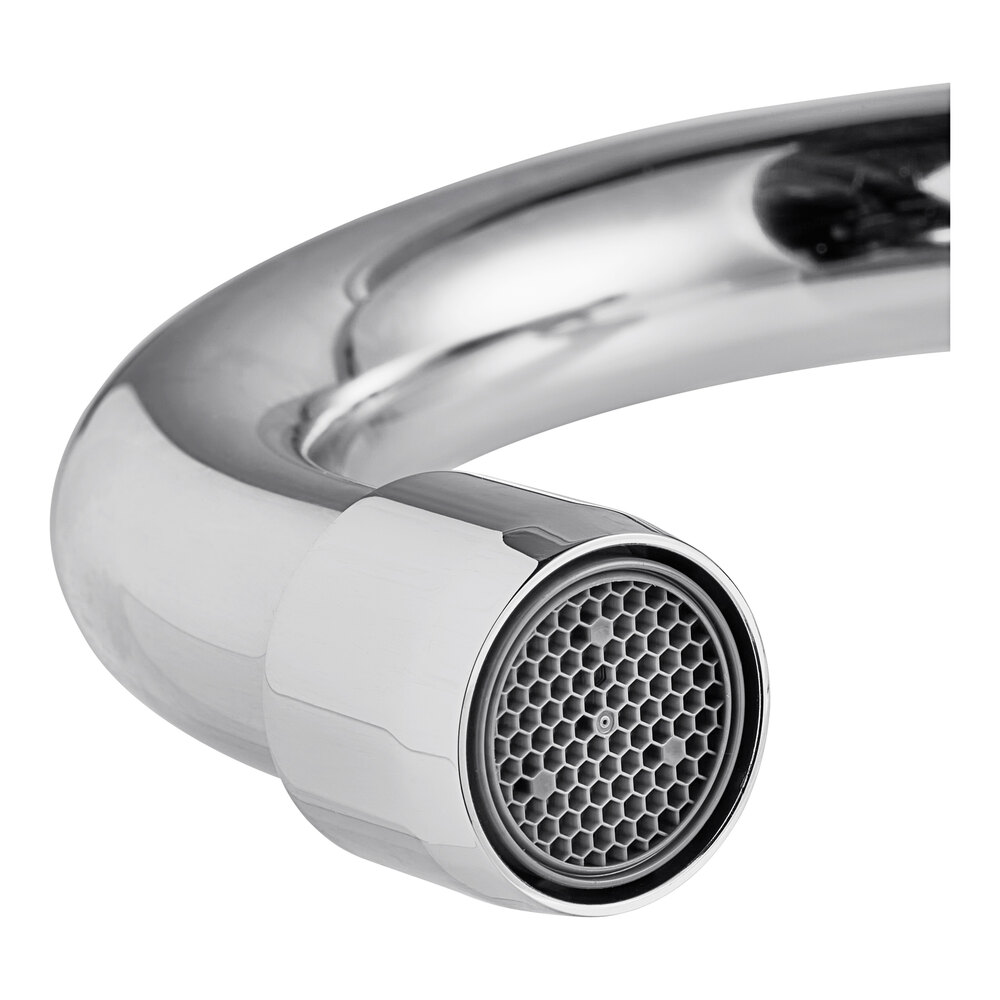

5 3/16" gooseneck swivel spout with 1.2 GPM flow rate- Single hole 1/2" NPS male inlet
- Wall-mounted base with attractive chrome-plated brass construction
- 140 degree maximum water temperature
- For use with knee or pedal valves (sold separately)
Certifications
Certified by NSF
This item is certified by NSF to applicable standards.
Hands-Free Product
This product features hands-free use, which reduces the risk of cross-contamination and germs spreading.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
Specifications
- Spout Length 3 5/8 Inches
- Faucet Width 1 7/8 Inches
- Faucet Height 8 1/8 Inches
- Faucet Centers Single
- Features Hands Free
- Features Hands-Free Faucet
- Features NSF Certified
- Finish Chrome
- Flow Rate 1.2 GPM
- Material Brass
- Maximum Water Temperature 140 Degrees F
- Mounting Holes Required 1 Mounting Hole
- Mounting Style Wall Mounted
- Mounting Type Adjustable
- Rough In Single
- Spout Clearance 5 3/16 Inches
- Spout Connection Size 1"-20 UNEF
- Spout Type Gooseneck
- Type Faucets
- Water Inlet Size 1/2 Inches
Frequently Asked Questions
View all FAQsWhen installing a faucet, these are some of the most common measurements you’ll need:
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
For both wall and deck mounted faucets, installation kits are sold separately. Check the Works With items to find the proper installation kits and parts!
