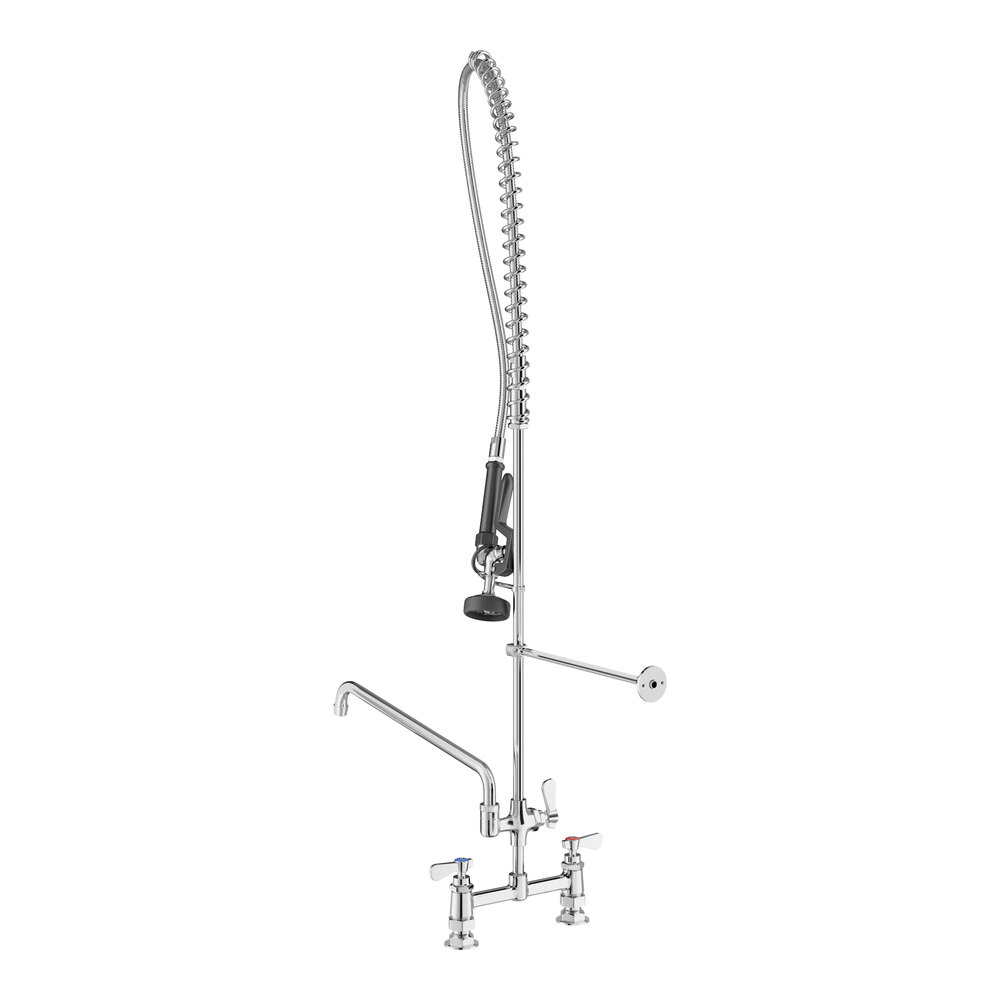

600PRD816
1.15 GPM Deck-Mounted Pre-Rinse Faucet with 8" Centers and 16" Add-On Faucet
Features
-
44" hose with 1.15 GPM spray valve
-
Deck-mounted design with 8" centers and 1/2" NPT inlets
-
Quarter-turn ceramic cartridges and check valves for high performance
-
Easy-to-install faucet base and spray valve with chrome-plated brass construction
-
Includes 16" add-on faucet (2 GPM), 18" riser, and 6" wall bracket
Certifications
-
NSF/ANSI 61 & 372
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
-
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
-
CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
-
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

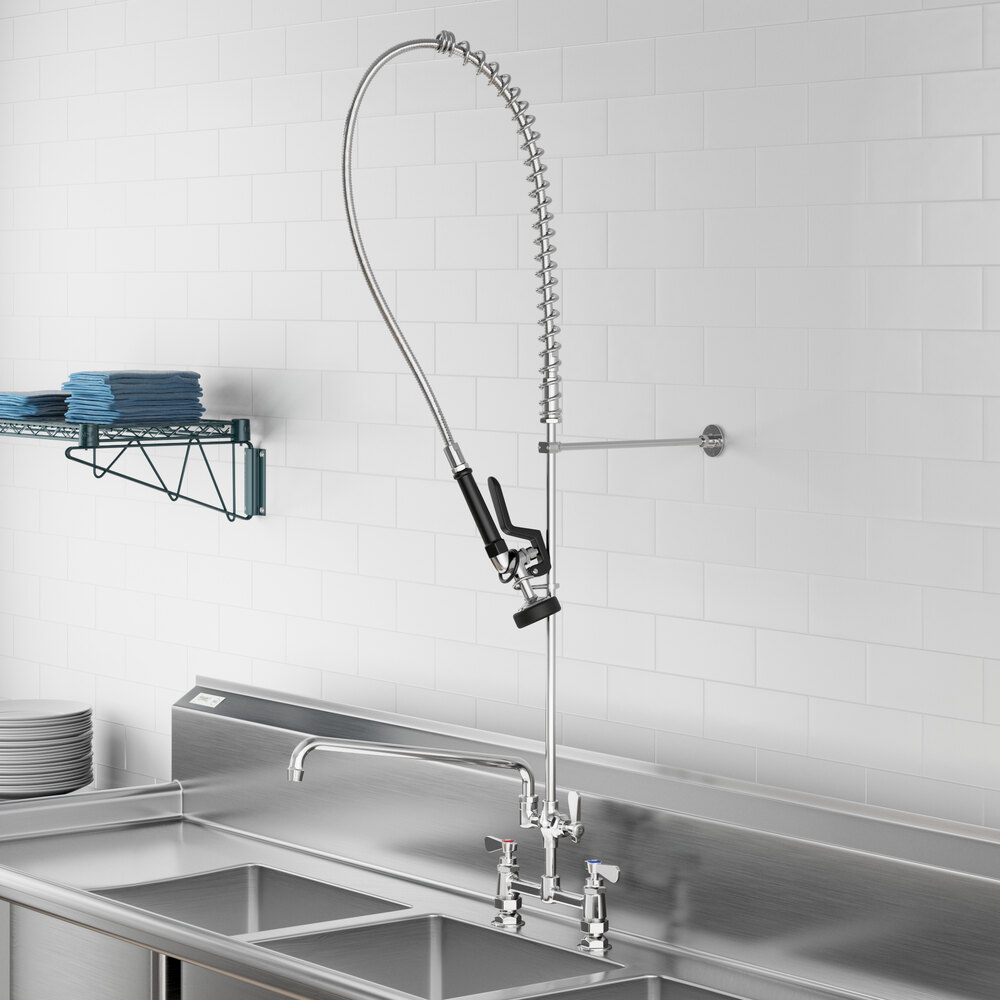

Remove the heaviest food debris with this Regency deck-mounted pre-rinse faucet!
Vital to any dishroom, this unit is perfect for rinsing excess food off your dishes before cleaning them in a commercial dish machine so that dishes come out clean and ready to use. It's also great for filling up sink compartments to complete your warewashing tasks, or for mixing up cleaning solutions in sanitation pails.
Powerful Spray Valve

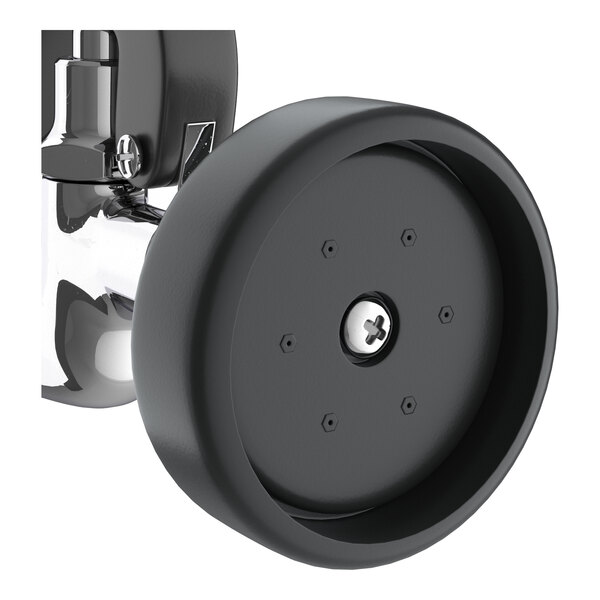

The 1.15 GPM spray valve gives you the power needed to blast away food debris while being easy on your water bill. A 44" long flexible hose gives you plenty of reach to deliver water where you need it, letting you handle delicate glassware and dinnerware or bulky items like pots and pans.
Reliable Design

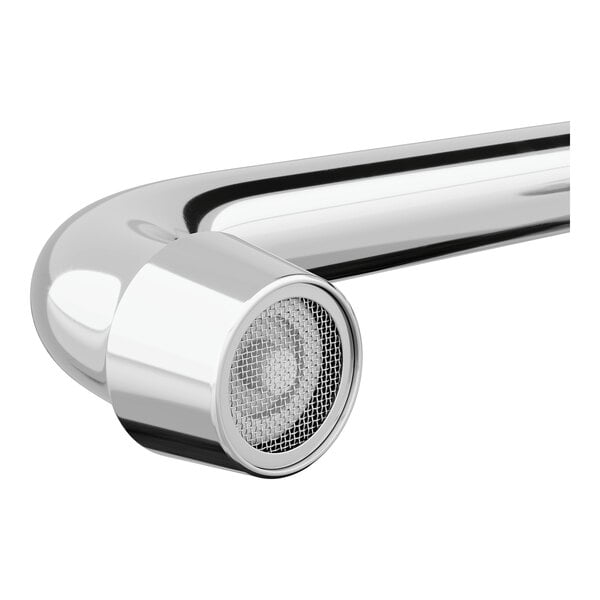

A 16" add-on faucet is included for when you need a regular faucet instead of a spray valve. This unit also uses ceramic cartridges that provide a much lower fail rate than compression cartridges. In this design, 2 ceramic discs fit together to create a watertight seal when closed, removing the need for a rubber seat washer. Additionally, the check valves prevent backflow for added dependability.
Easy Installation
This deck-mounted faucet comes with 8" adjustable centers for easy installation, and the 1/2" NPT inlet connections make it simple to connect to your facility's water lines. This unit also comes with an 18" riser and a 6" wall bracket to secure it to the wall for added stability.
Regency Brand
Designed with a chrome-plated brass faucet body and ceramic cartridges, it's easy to see why Regency pre-rinses are a great solution for any business. Offering functionality and unbeatable value, Regency is your source for quality commercial furnishings and equipment.
Watch more videos
Regency Pre-Rinse Faucets
Power through even the toughest food debris with Regency pre-rinse faucets.
Specifications
- Hose Length 44 Inches
- Faucet Width 8 Inches
- Faucet Height 38 13/16 Inches
- Add-On Faucet 16 Inches
- Add-on Flow Rate 2 GPM
- Add-On Type Swing
- Cartridge Type Ceramic
- Faucet Centers 8 Inches
- Features NSF Listed
- Features NSF/ANSI 372
- Features NSF/ANSI 61
- Features With Riser
- Finish Chrome
- Handle Type Lever
- Material Brass
- Mounting Style Deck Mounted
- Mounting Type Adjustable
- Pre Rinse Unit Type Hose and Spring
- Spout Connection Size 1"-20 UNEF
- Spray Valve Flow Rate 1 3/20 GPM
- Temperature Rating 140 Degrees F
- Thread Type UNEF
- Water Inlet Size 1/2 Inches
Customer Reviews
Overall Rating
1.0 out of 5 star rating
- 0 customers gave 5 star ratings
- 0 customers gave 4 star ratings
- 0 customers gave 3 star ratings
- 0 customers gave 2 star ratings
- 1 customers gave 1 star ratings
Share your thoughts
If you've used this product, leave a review to tell us and other customers what you thought about it.
Frequently Asked Questions
View all FAQsThe maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).
Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM
These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
This product cannot be shipped to Canada.
Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket. If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective. If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.
Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.
When installing a faucet, these are some of the most common measurements you’ll need:
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
For both wall and deck mounted faucets, installation kits are sold separately. Check the Works With items to find the proper installation kits and parts!
