600PRD424DJ

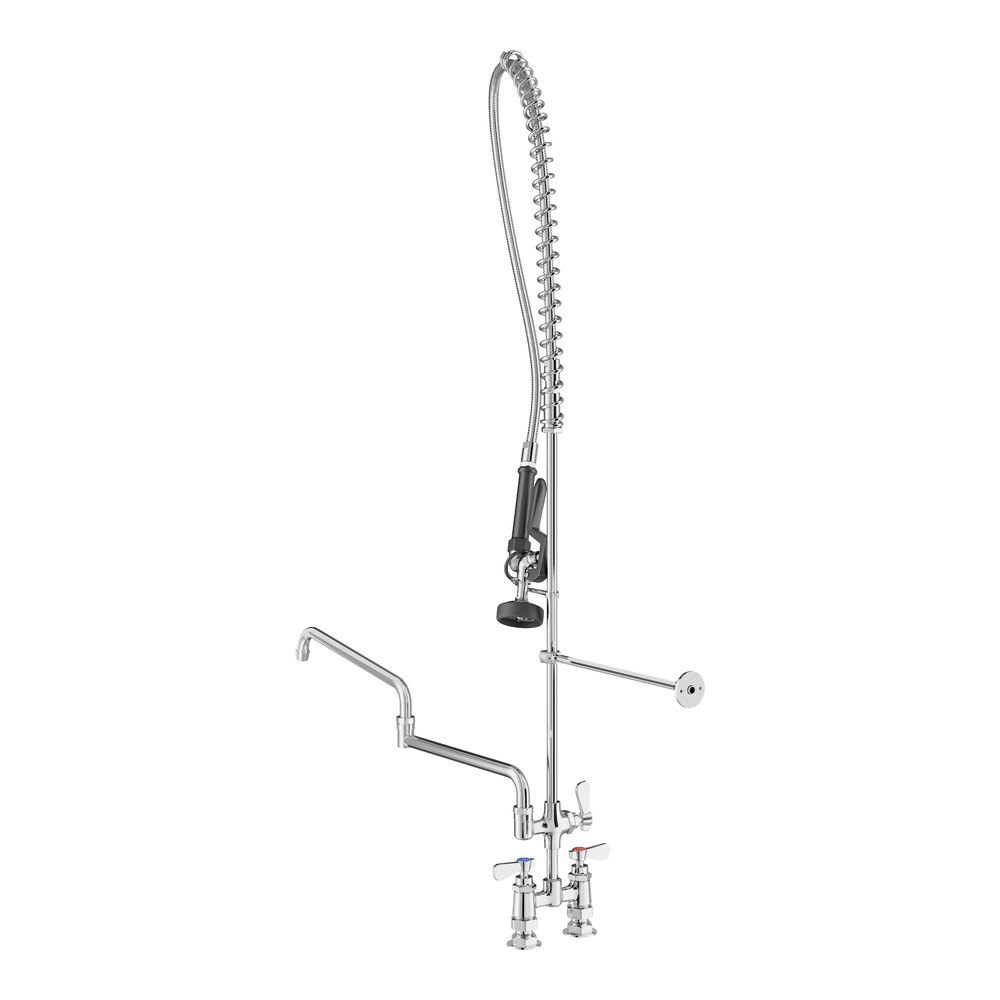

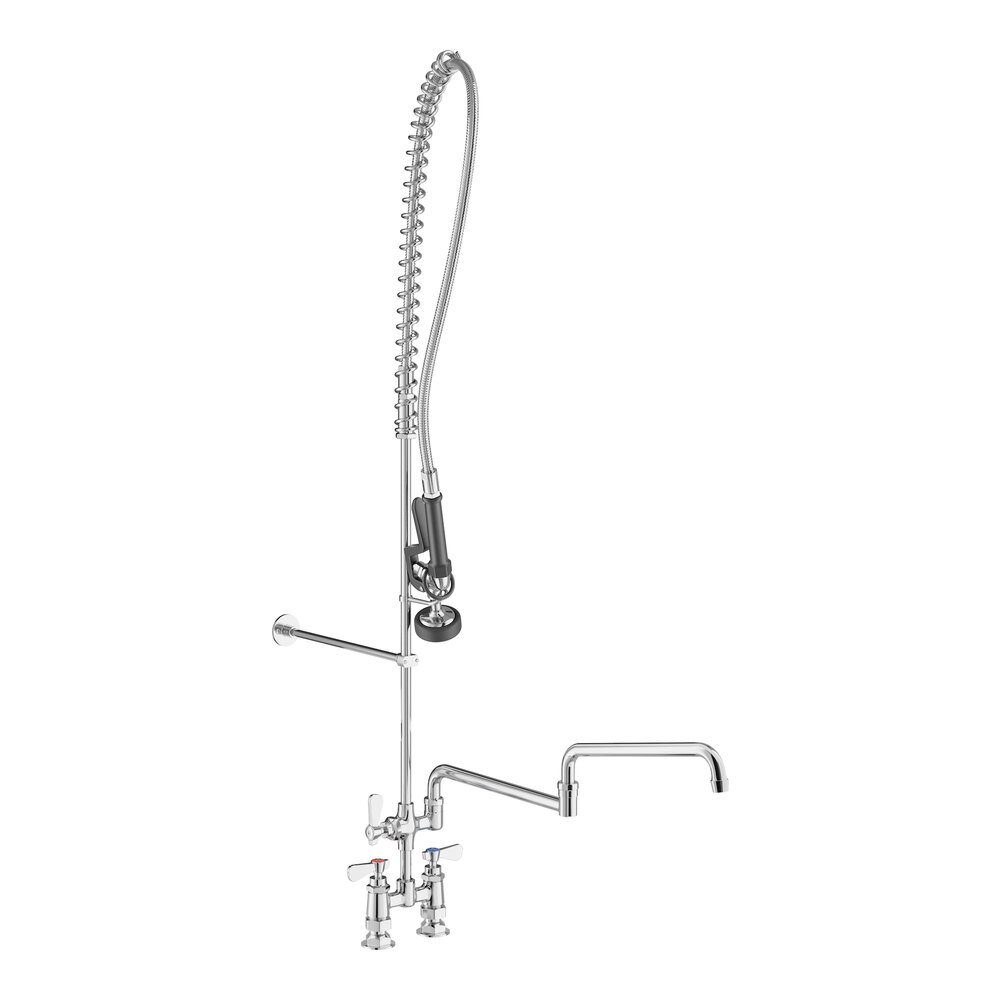

1.15 GPM Deck-Mounted Pre-Rinse Faucet with 4" Centers and 24" Double-Jointed Add-On Faucet
Other Available Sizes
- 10" Add-On Faucet
- 12" Add-On Faucet
- 12" Double-Jointed Add-On Faucet
- 14" Add-On Faucet
- 15" Double-Jointed Add-On Faucet
- 16" Add-On Faucet
- 18" Add-On Faucet
- 18" Double-Jointed Add-On Faucet
- 24" Double-Jointed Add-On Faucet
- 6" Add-On Faucet
- 8" Add-On Faucet
- No Add-On Faucet
Features
-
44" hose, 1.15 GPM spray valve
-
Deck-mounted design with 4" centers, 1/2" NPT inlets
-
Quarter-turn ceramic cartridges for long life and leak protection, check valves prevent backflow
-
Easy to install faucet base and spray valve, chrome-plated brass construction
-
24" double-jointed add-on faucet (2 GPM), 18" riser
Certifications
-
NSF/ANSI 61 & 372
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
-
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
-
CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
-
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

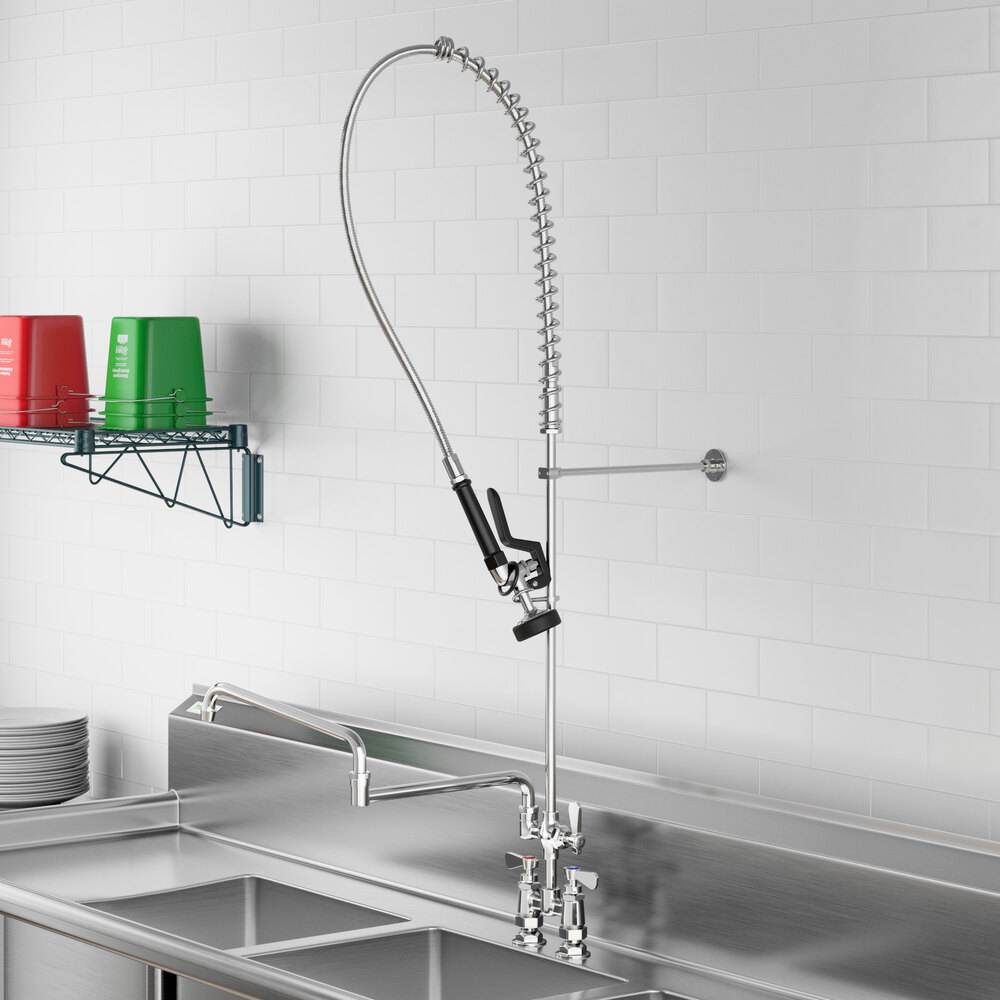

This Regency deck-mounted pre-rinse faucet with 4" centers is perfect for rinsing excess food and sauces off of your dishes prior to running them through your commercial dish machine.
A quality pre-rinse unit is vital to any dishroom, removing the heaviest food debris so that dishes come out clean and ready to use. A 44" long flexible hose gives you plenty of reach to deliver water where you need it, letting you handle glassware and dinnerware, or bulky items like pots and pans.
Innovative Design
This reliable faucet uses ceramic cartridges, which provide a much lower fail rate than the compression cartridges widely used in the industry. In this design, 2 ceramic discs fit together to create a watertight seal when closed. This removes the need for a rubber seat washer, which is one of the most frequently replaced parts on a faucet.
Powerful Spray Valve
The spray valve delivers a flow rate of 1.15 GPM, giving you the power needed to blast away food debris while being easy on your water bill.
Double-Jointed Faucet
This pre-rinse unit also comes with a double-jointed 24" add-on faucet for times when you need a normal faucet instead of a spray valve. It is perfect for filling up sink compartments to complete your warewashing tasks or mixing up cleaning solutions in sanitation pails. This double-jointed spout offers additional versatility over a swing spout because you can rotate each section independently, and fold it to the side to make way for especially large or bulky items. It comes with a 2 GPM aerator at the outlet, which helps to regulate the stream and reduce splashing.
Easy Installation
Designed with a chrome-plated brass faucet body and ceramic cartridges, it's easy to see why Regency pre-rinses are a great solution for any business. This is a deck-mounted faucet, and it comes with 4" adjustable centers that make installation easy. A set of 1/2" NPT inlets make it easy to connect it to your facility's water lines. This pre-rinse unit comes with an 18" riser.
Watch more videos
Regency Pre-Rinse Faucets
Power through even the toughest food debris with Regency pre-rinse faucets.
Specifications
- Hose Length 44 Inches
- Faucet Width 4 Inches
- Faucet Height 38 13/16 Inches
- Add-On Faucet 24 Inches
- Add-on Flow Rate 2 GPM
- Add-On Type Double Jointed
- Cartridge Type Ceramic
- Faucet Centers 4 Inches
- Features NSF/ANSI 372
- Features NSF/ANSI 61
- Features With Riser
- Finish Chrome
- Handle Type Lever
- Material Brass
- Mounting Style Deck Mounted
- Mounting Type Adjustable
- Pre Rinse Unit Type Hose and Spring
- Spray Valve Flow Rate 1 3/20 GPM
- Temperature Rating 140 Degrees F
- Water Inlet Size 1/2 Inches
Frequently Asked Questions
View all FAQsThe maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).
Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM
These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.
This product cannot be shipped to Canada.
Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket. If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective. If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.
Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.
When installing a faucet, these are some of the most common measurements you’ll need:
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
For both wall and deck mounted faucets, installation kits are sold separately. Check the Works With items to find the proper installation kits and parts!
